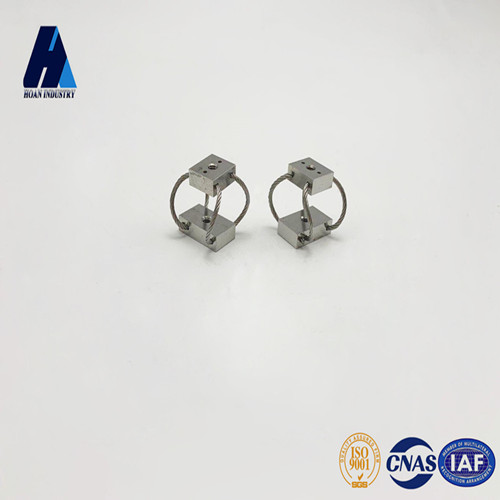

Shooting Camera Gimbal GR1 Series Camera Vibration Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Shooting Camera Gimbal GR1 Series Camera Vibration Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

By building your own Camera Gimbal Drone or using for your Helicopter Drone Aerial Cameras, our GR1 Series is your best choice!

Xi'an Hoan's GR1 Series aerial camera vibration isolators is one type camera vibration isolators , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

There are 4 models included in the GR1 series, which has the max static load from 1.3N (0.13kg) to 3.3N (0.34kg). With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability.

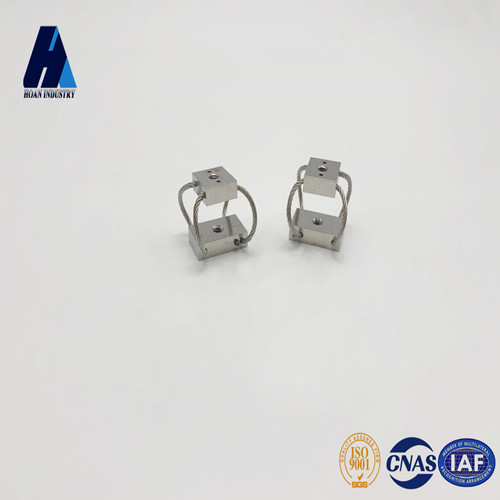

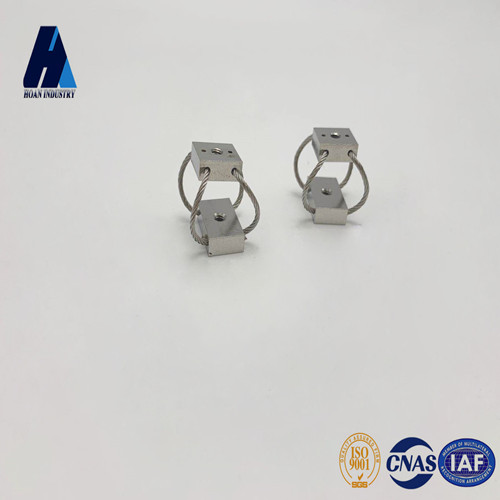

The GR1 Series aerial camera isolators is made by the 1.2mm diameter wire rope winded in the two mounting bars, which can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR1 series isolators are used widely in the field of camra drone, aerial photographic equipment, helicopter drone, UAV camera, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.


Technical Parameter:

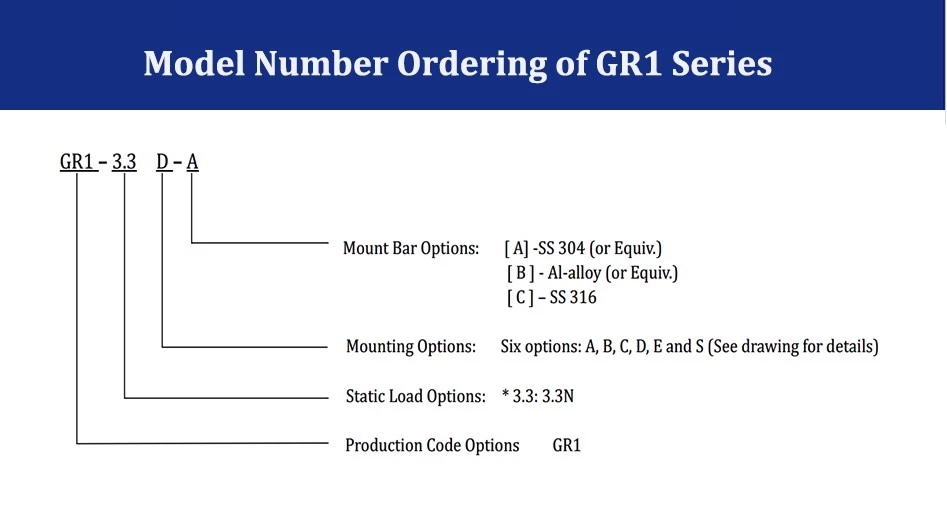

  • Model Number Code Ordering of GR1 Series:

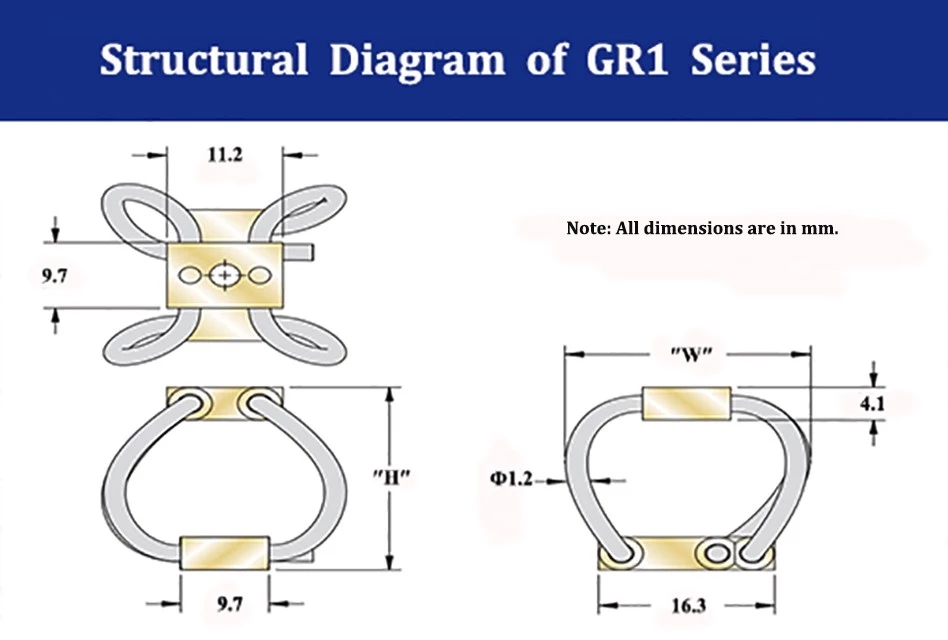

  • Structural Diagram of GR1 Series:

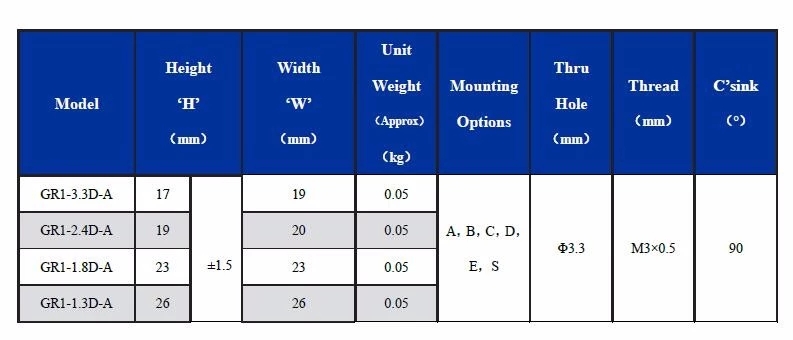

  • Dimension of GR1 Series:

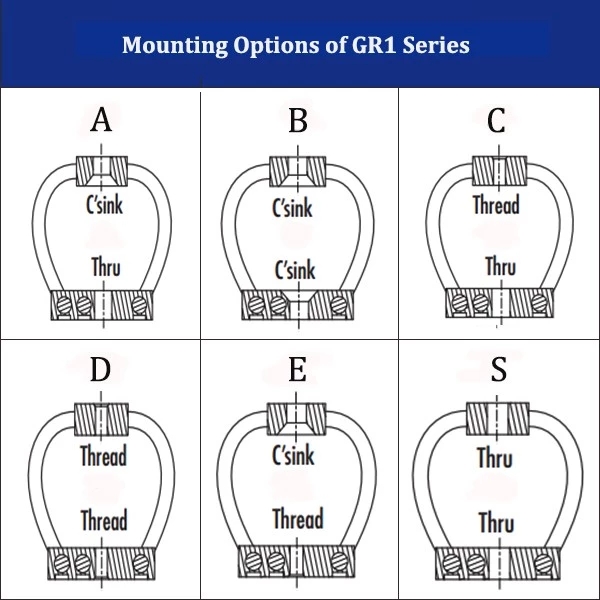

  • Mounting Options of GR1 Series:

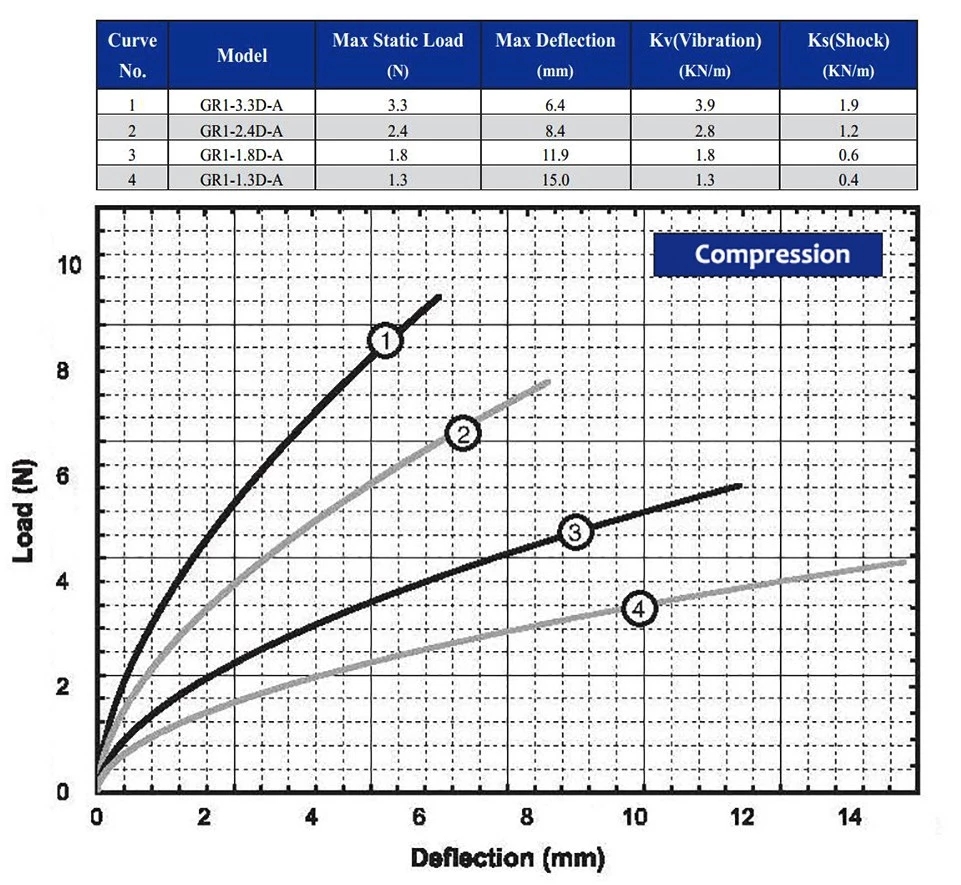

  • Compression of GR1 Series:

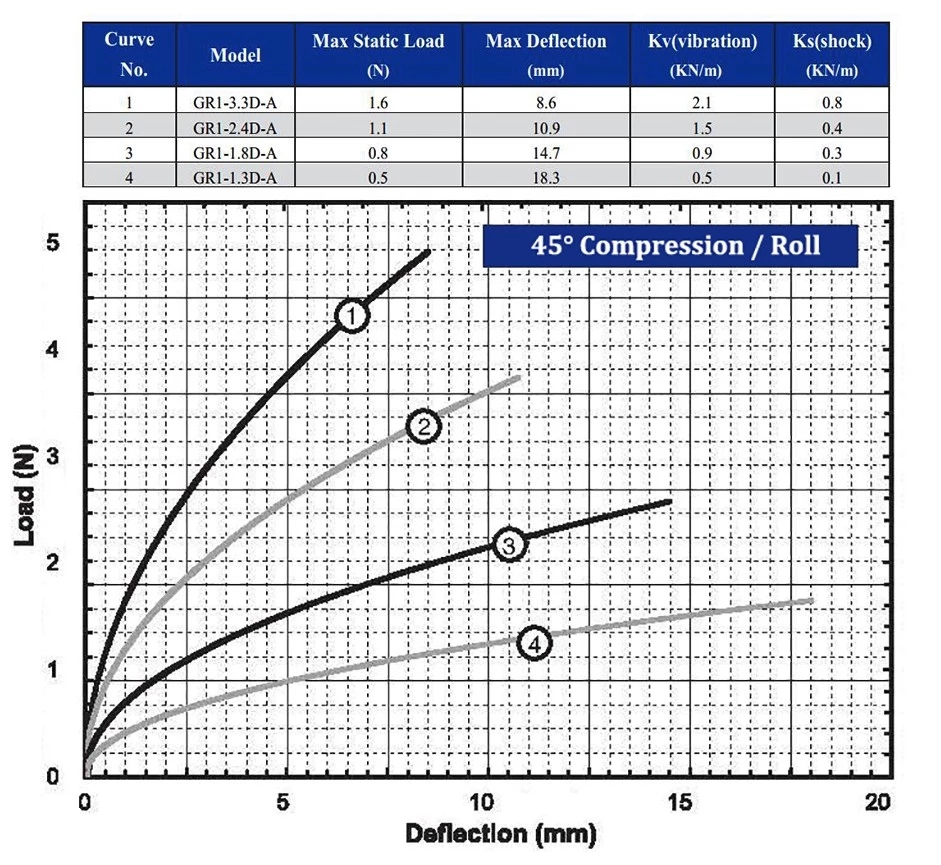

  • 45° Compression of GR1 Series:

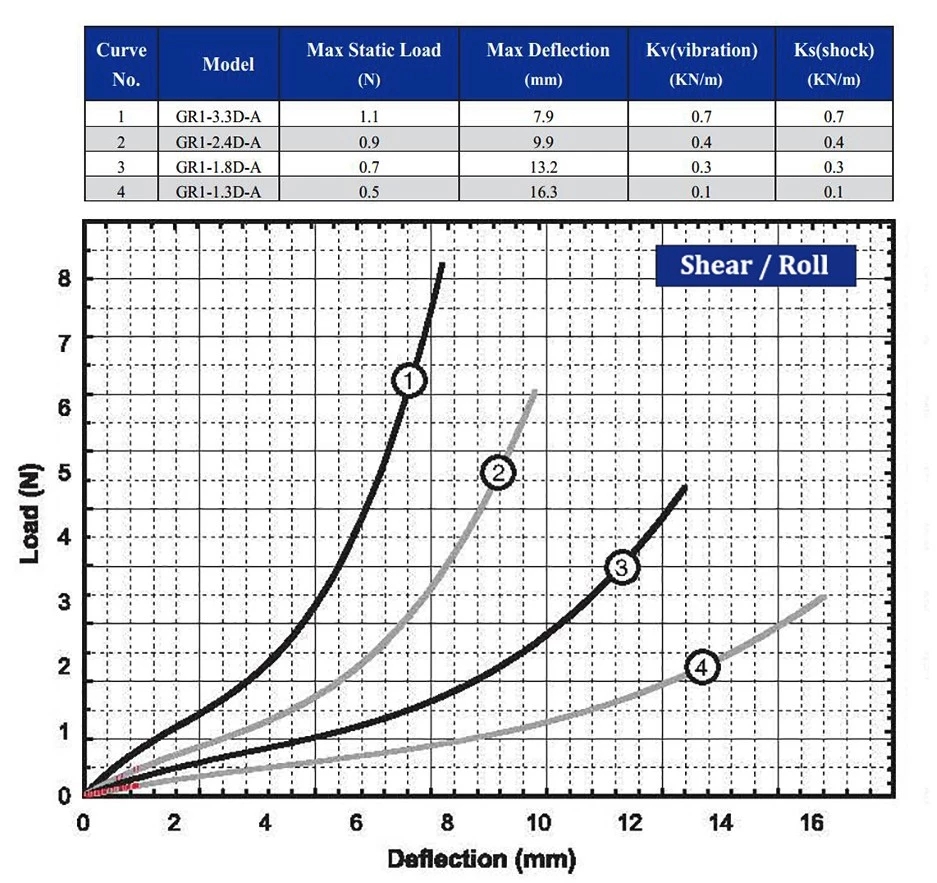

  • Shear/Roll of GR1 Series:
