Helicopter Drone UAV Camera Gimbal GR2 Series Wire Rope Isolator - 副本Helicopter Drone UAV Camera Gimbal GR2 Series Wire Rope Isolator - 副本Helicopter Drone UAV Camera Gimbal GR2 Series Wire Rope Isolator - 副本

Helicopter Drone UAV Camera Gimbal GR2 Series Wire Rope Isolator - 副本

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Helicopter Drone UAV Camera Gimbal GR2 Series Wire Rope Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

Choose GR2 series helicopter drone compact wire rope isolators to build your own Camera Gimbal!

Xi'an Hoan's GR2 Series compact wire rope isolators are designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the cameras as well as airborne digital cameras.

There are 4 models included in the GR2 series, which has the max static load from 4.9N (0.50kg) to 12N (1.22kg).

The GR2 Series compact wire rope isolators is made by the 1.6mm diameter wire rope winded in the two mounting bars, which can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.


Technical Parameter:

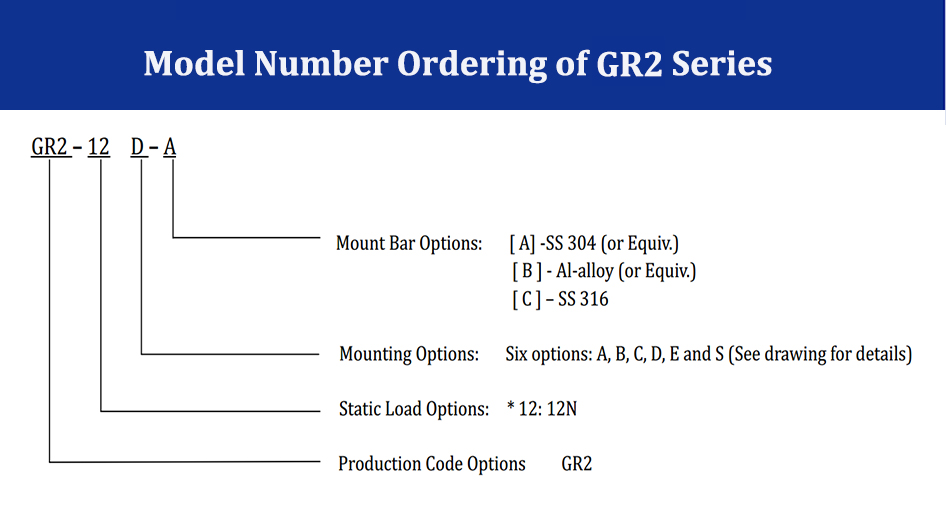

  • Model Number Code Ordering of GR2 Series:

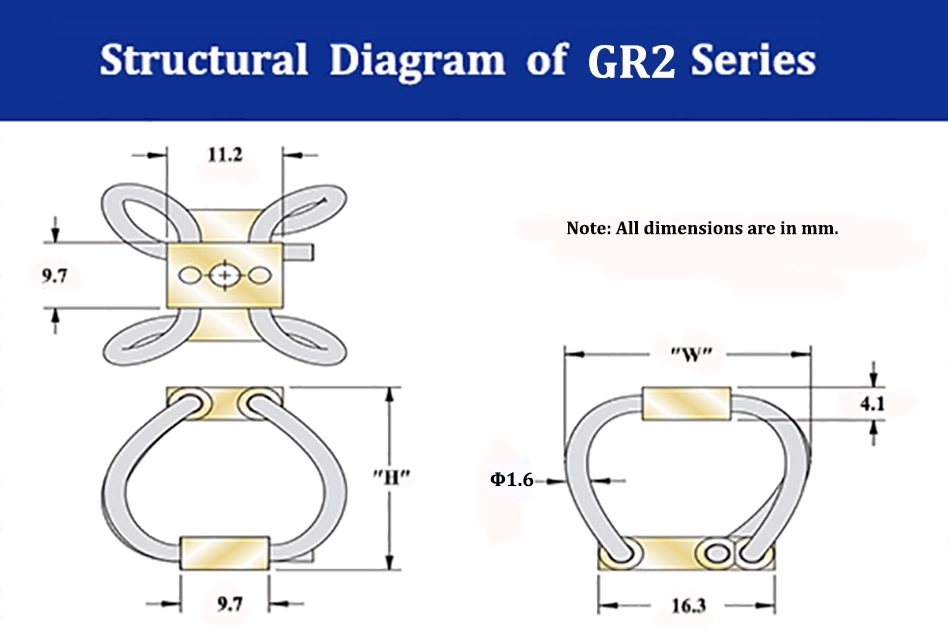

  • Structural Diagram of GR2 Series:

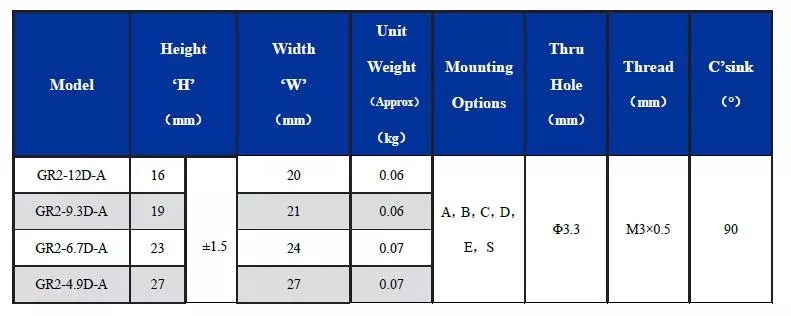

  • Dimension of GR2 Series:

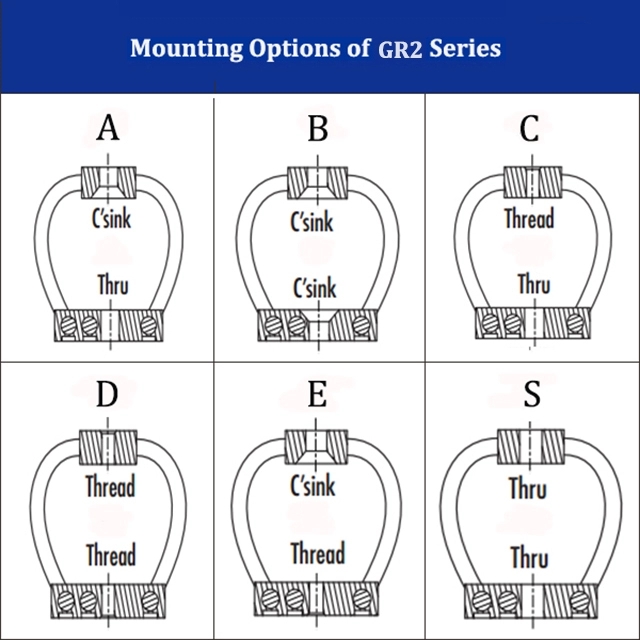

  • Mounting Options of GR2 Series:

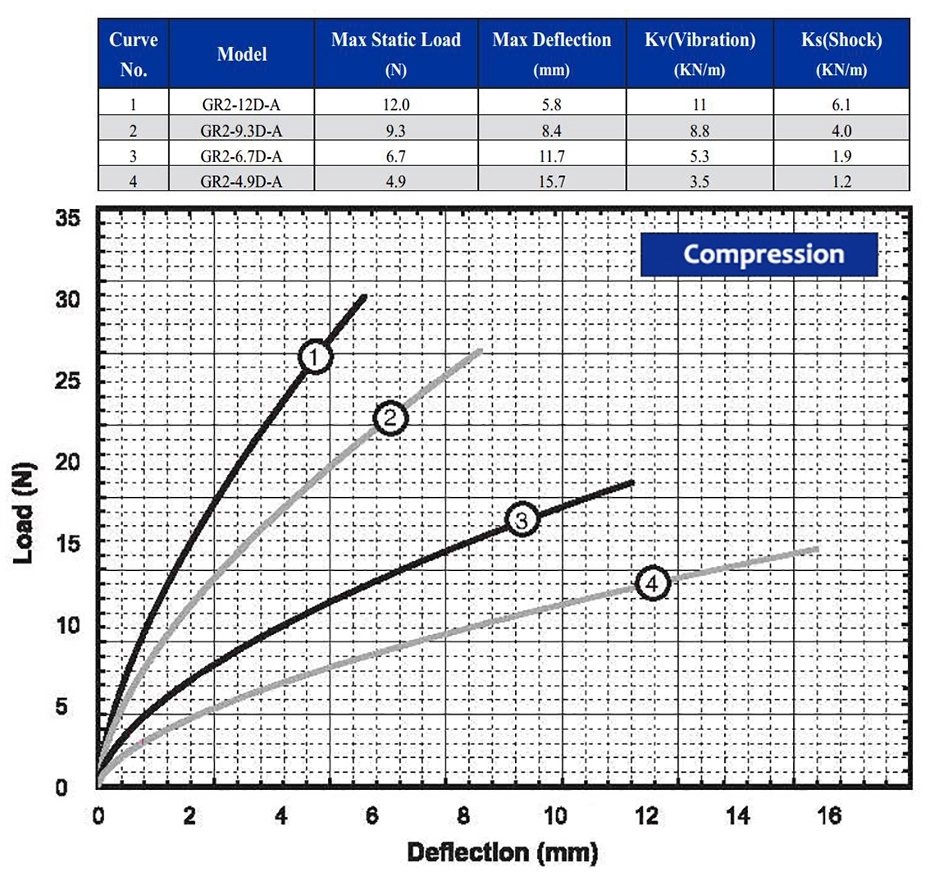

  • Compression of GR2 Series:

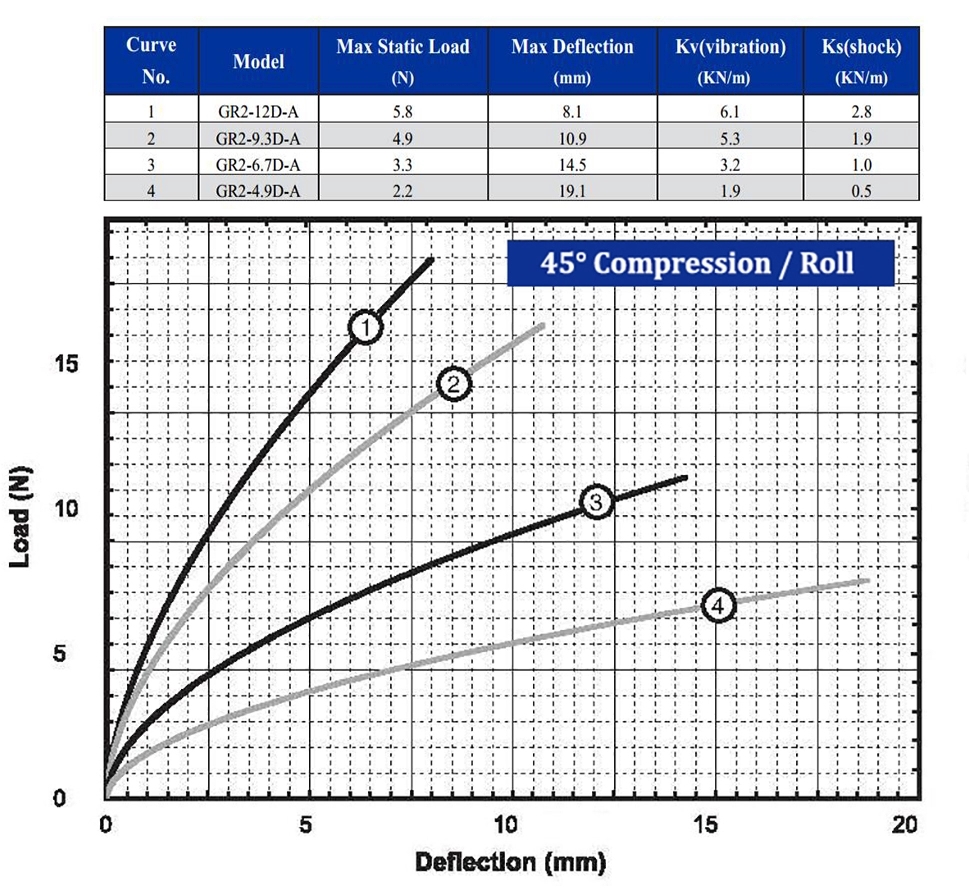

  • 45° Compression of GR2 Series:

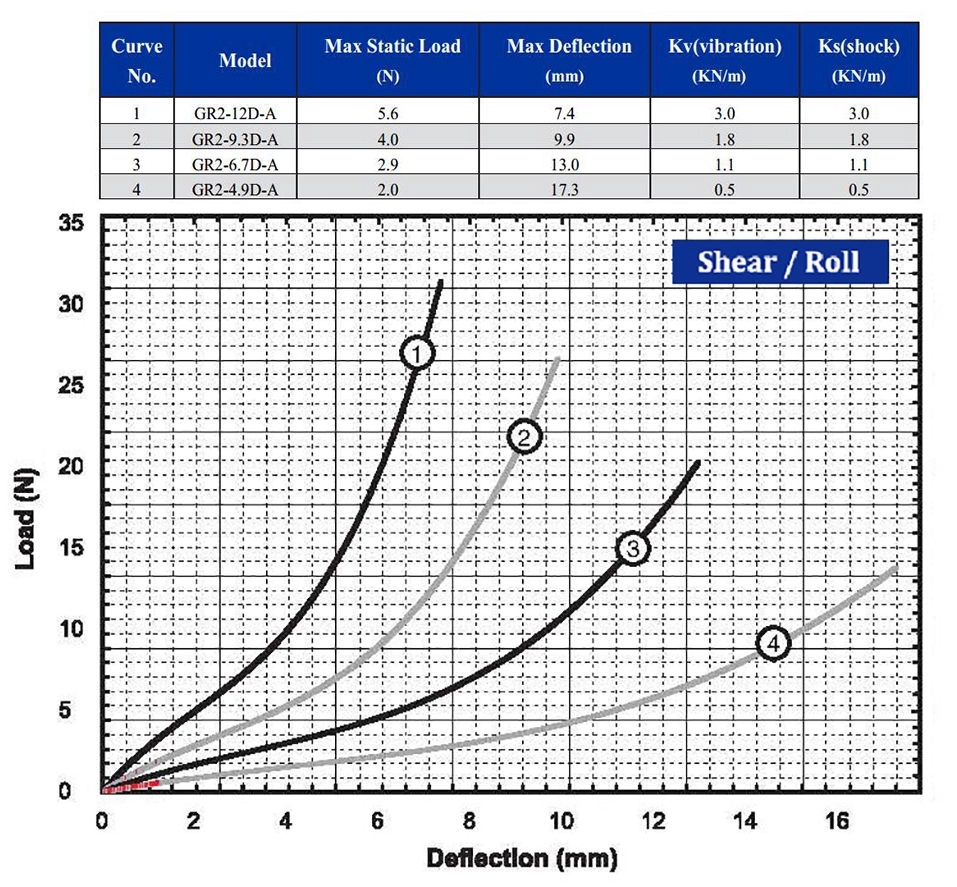

  • Shear/Roll of GR2 Series:



Company Information

Xi'an Hoan Microwave Co. Ltd., headquartered in China, Xi’an city, was founded in 2005, is a premier supplier of Industry Energy Absorption and Vibration Isolation Products.

With almost 13 years professional experience in manufacturing, designing, and researching, our products are widely used throughout the global field of industry, electronics, aeronautics and space, military defense, shipbuilding, transportation, energy, UAV camera, and rail, etc.

We offer various range of vibration isolation products, to create you the ideal safer and better protection against the harm of vibration and shock you are worrying. Our variety types of standard and custom vibration isolation products win us the good reputation of top quality, fast delivery time, professional technical support and service.

We are now the best seller for more than 31 provinces in China and almost 30 overseas countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large-scale construction, studios, theaters, vehicles, vessels, and machines.

Contact us now to see how our products can benefit your special equipment application demands or in any way that we can help you meet your production requirements.

All your feedback will be appreciated well and help us do better.

The company focuses on product quality, and at the same time focuses on shortening transportation time, providing professional technical assistance and services, and considering for customers. We are your trusted partner.
