  • Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator
  • Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator
  • Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator
Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator

Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Helicopter Drone Camera Gimbal GR4 Camera Vibration Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

By building your own Camera Gimbal Stabilizer, the GR4 Series is your best choice!

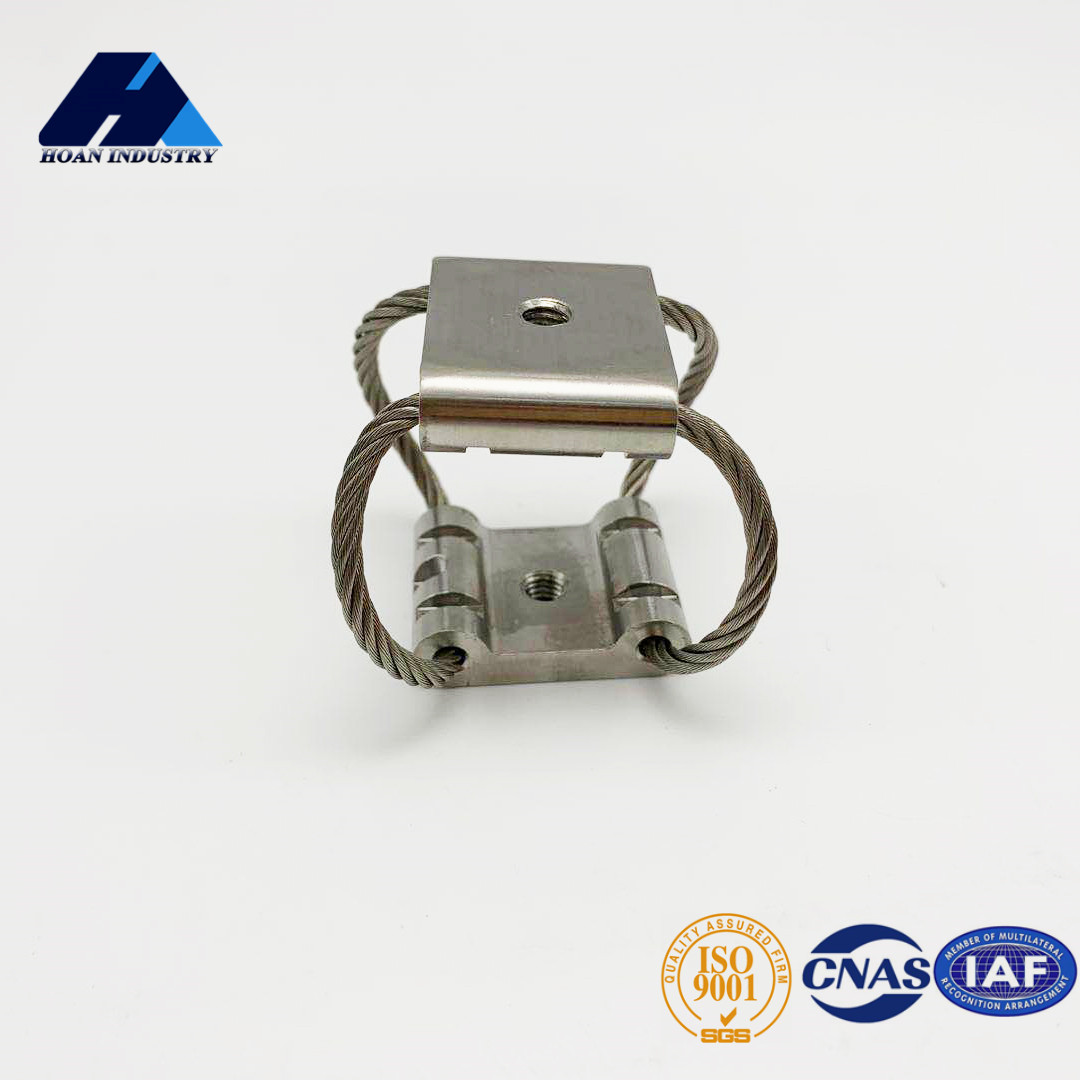

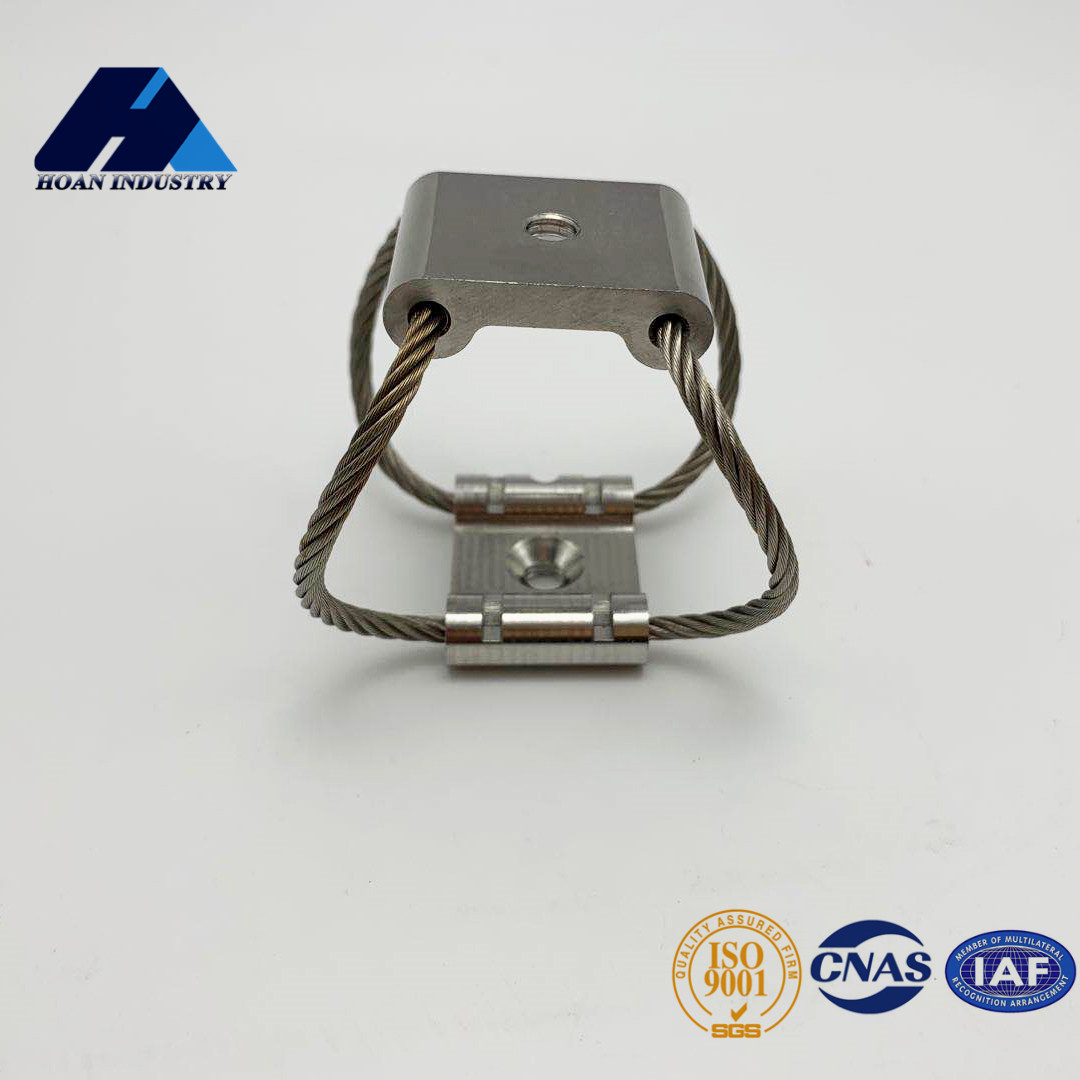

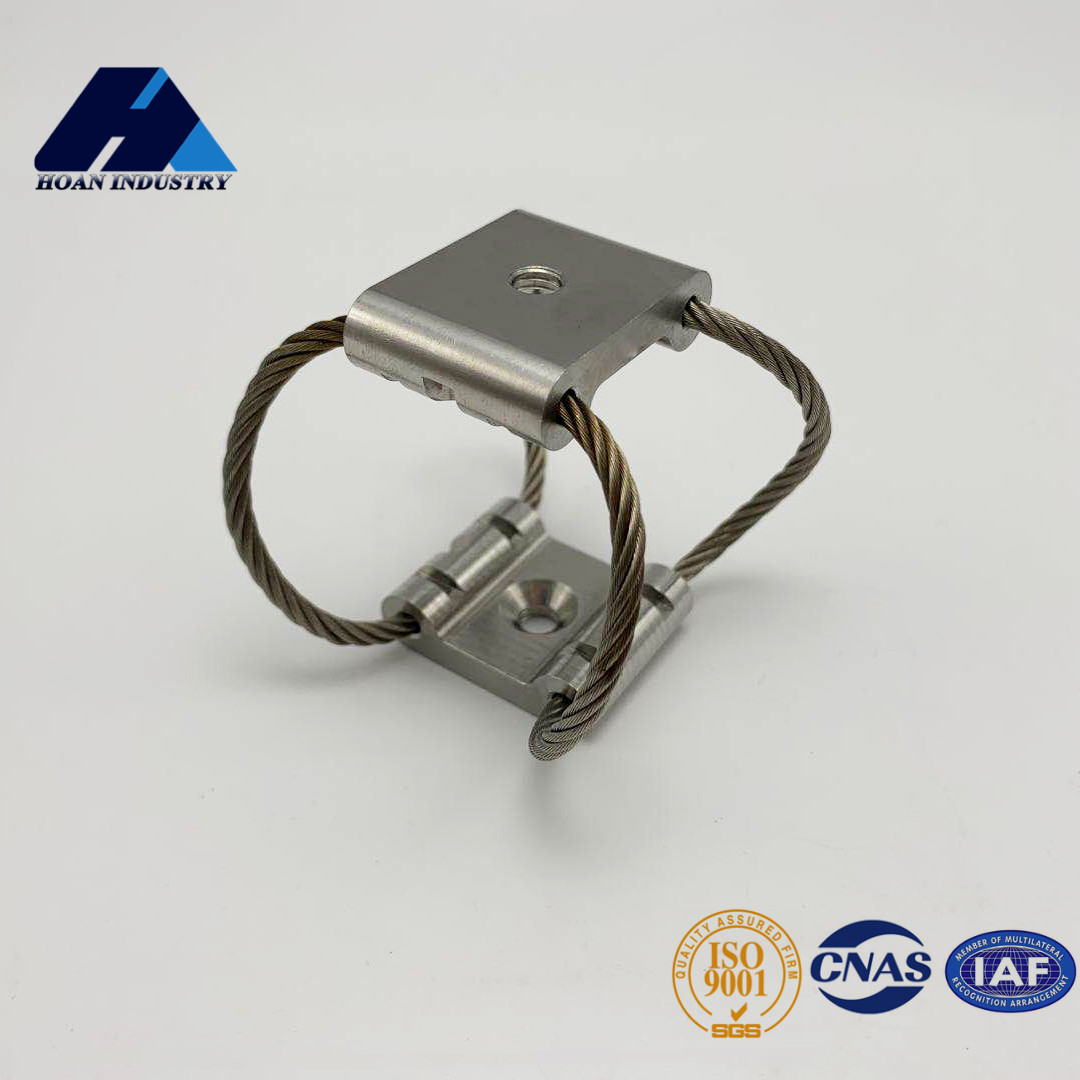

The GR4 Series camera vibration isolators is one type camera vibration isolators are made by the 3.2mm diameter wire ropes winded in the two mounting bars, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.


There are 4 models included in the GR4 series, which has the max static load from 6.7N (0.68kg) to 24N (2.45kg). With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability.


The GR4 Series camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.


Nowadays, the GR series isolators are used widely in the field of aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.


Technical Parameter:

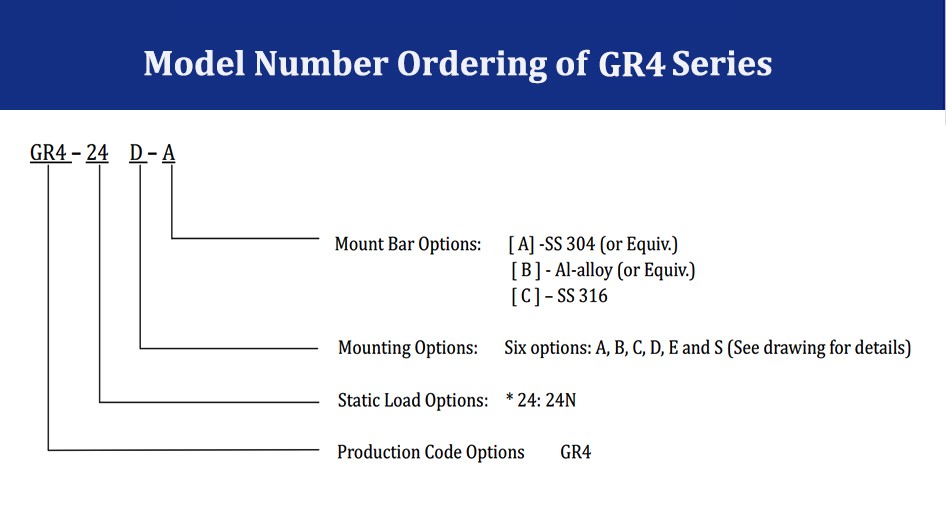

  • Model Number Code Ordering of GR4 Series:

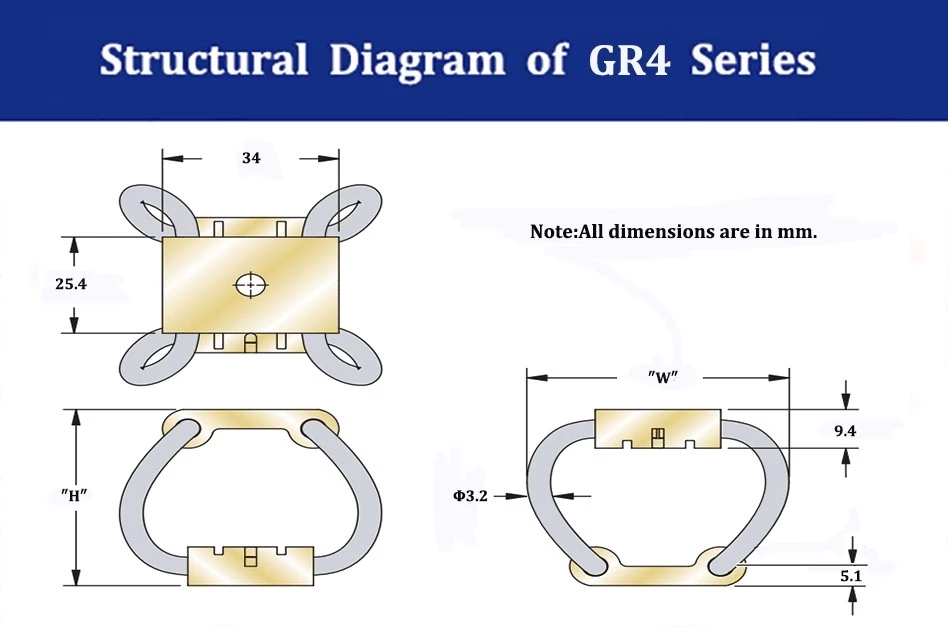

  • Structural Diagram of GR4 Series:

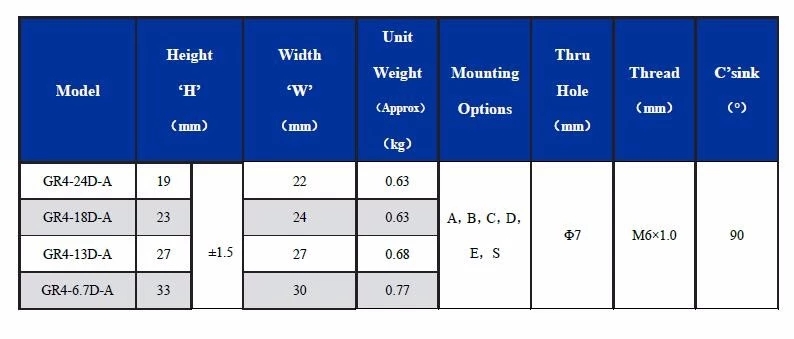

  • Dimension of GR4 Series:

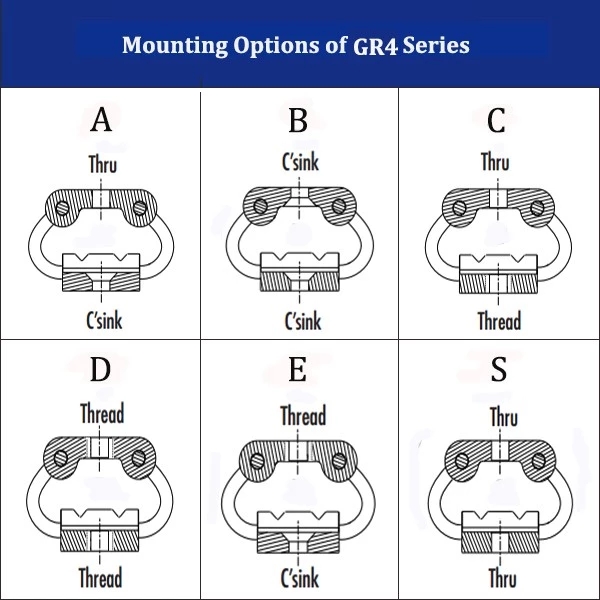

  • Mounting Options of GR4 Series:

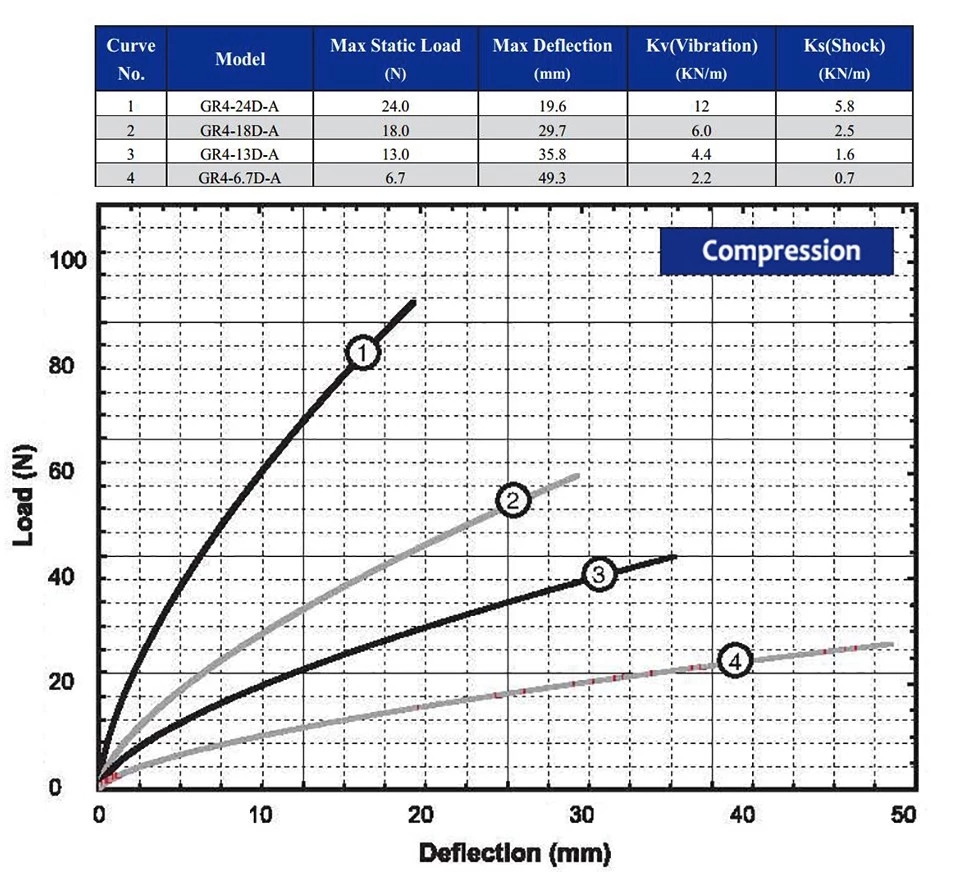

  • Compression of GR4 Series:

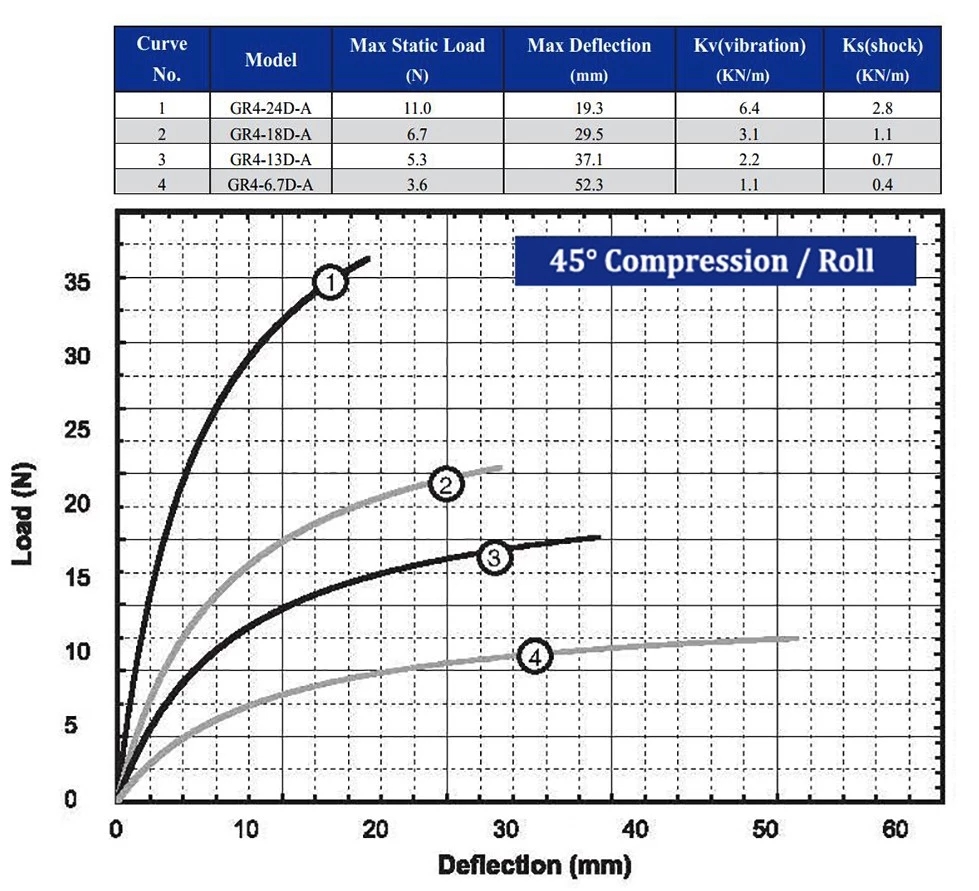

  • 45° Compression of GR4 Series:

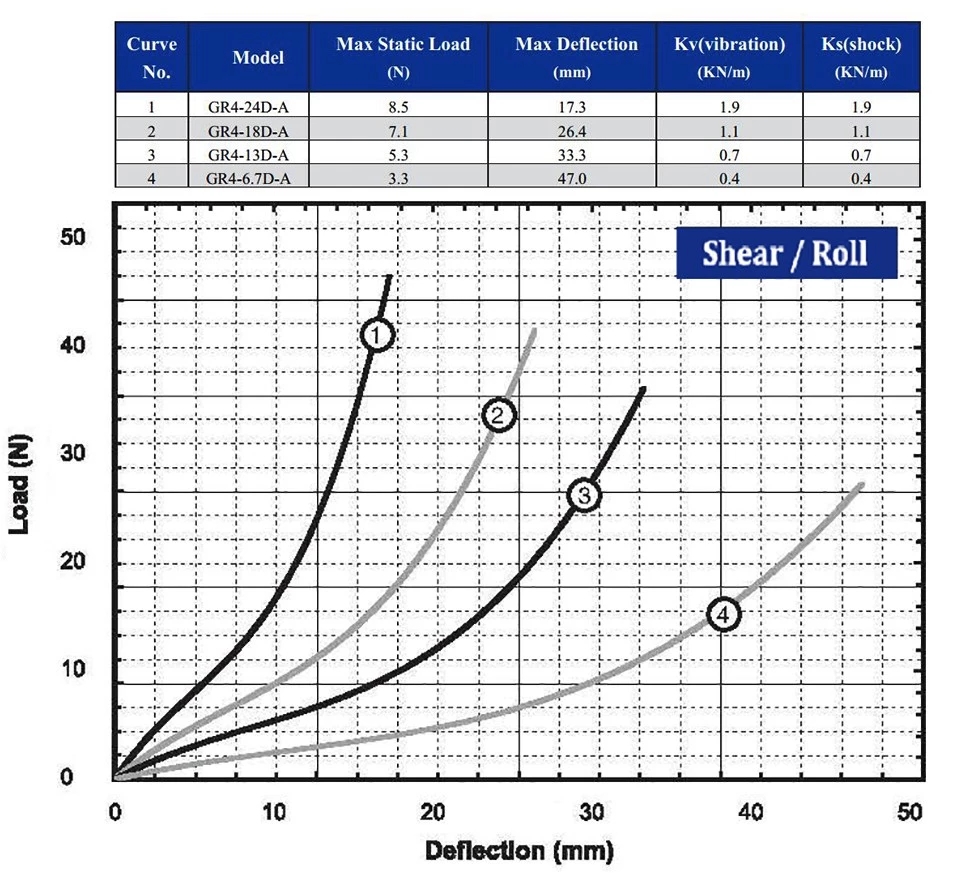

  • Shear/Roll of GR4 Series:



Company Information

Xi'an Hoan Microwave Co. Ltd., headquartered in China, Xi’an city, was founded in 2005, is a premier supplier of Industry Energy Absorption and Vibration Isolation Products.

With almost 13 years professional experience in manufacturing, designing, and researching, our products are widely used throughout the global field of industry, electronics, aeronautics and space, military defense, shipbuilding, transportation, energy, UAV camera, and rail, etc.

We offer various range of vibration isolation products, to create you the ideal safer and better protection against the harm of vibration and shock you are worrying. Our variety types of standard and custom vibration isolation products win us the good reputation of top quality, fast delivery time, professional technical support and service.

We are now the best seller for more than 31 provinces in China and almost 30 overseas countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large-scale construction, studios, theaters, vehicles, vessels, and machines.

Contact us now to see how our products can benefit your special equipment application demands or in any way that we can help you meet your production requirements.

All your feedback will be appreciated well and help us do better.

The company focuses on product quality, and at the same time focuses on shortening transportation time, providing professional technical assistance and services, and considering for customers. We are your trusted partner.
