Embedded Electronics Camera JGX-0160 Series Wire IsolatorEmbedded Electronics Camera JGX-0160 Series Wire IsolatorEmbedded Electronics Camera JGX-0160 Series Wire Isolator

Embedded Electronics Camera JGX-0160 Series Wire Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Embedded Electronics Camera JGX-0160 Series Wire Isolator
Product Description:

Product Description

Xi'an Hoan's extensive range of stainless steel wire rope isolators and elastomeric shock mounts, most equipment can be suspended successfully. Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan's engineers performs the correct shock calculations.

Wire rope isolators are used to control vibration produced by motors for noise attenuation. They are made by the stainless steel stranded cable threaded through stainless steel or aluminum retaining bars, in order to provide perfect vibration isolation any time in use.

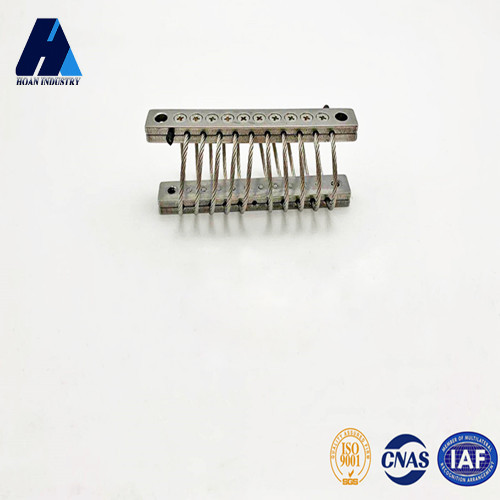

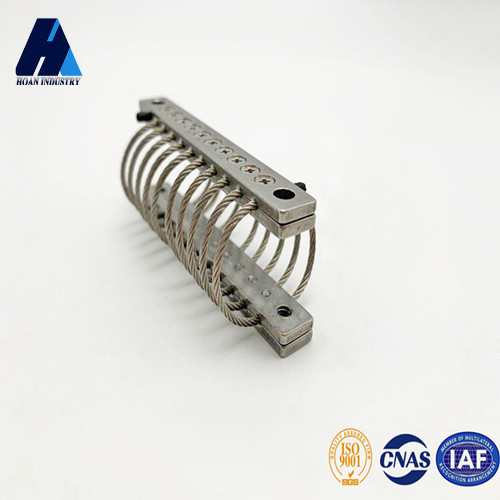

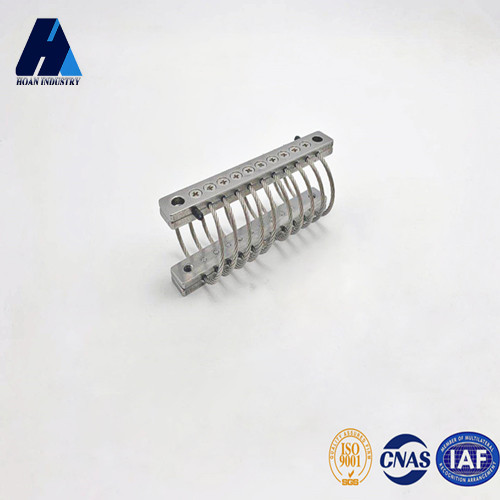

JGX-0160 multi-application wire rope isolator is the new designed 10 loops 1.6mm diameter model with max static load from 2.0kg to 4.8kg, especially used in the precise instruments or systems for noise attenuation.

With 6 different mounting options and versatile size variation for your selection, the multi-application wire rope isolator can meet all your needs for military defense, industrial, marine, transportation and any commercial uses.

The JGX-0160 multi-application stainless steel wire rope isolator is used widely in the field of defense, military vehicles, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

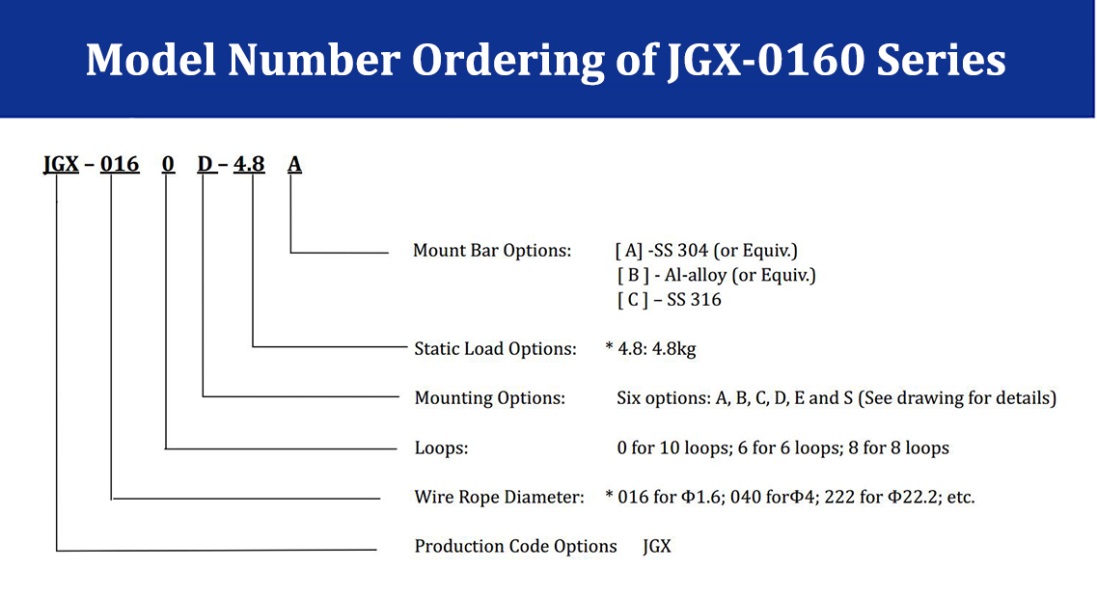

  • Model Number Code Ordering of JGX-0160 Series:

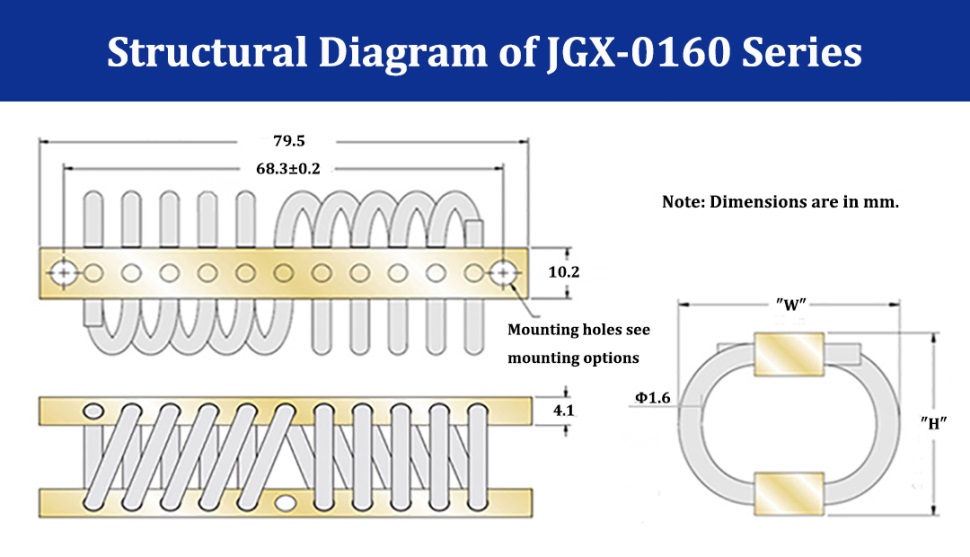

  • Structural Diagram of JGX-0160 Series:

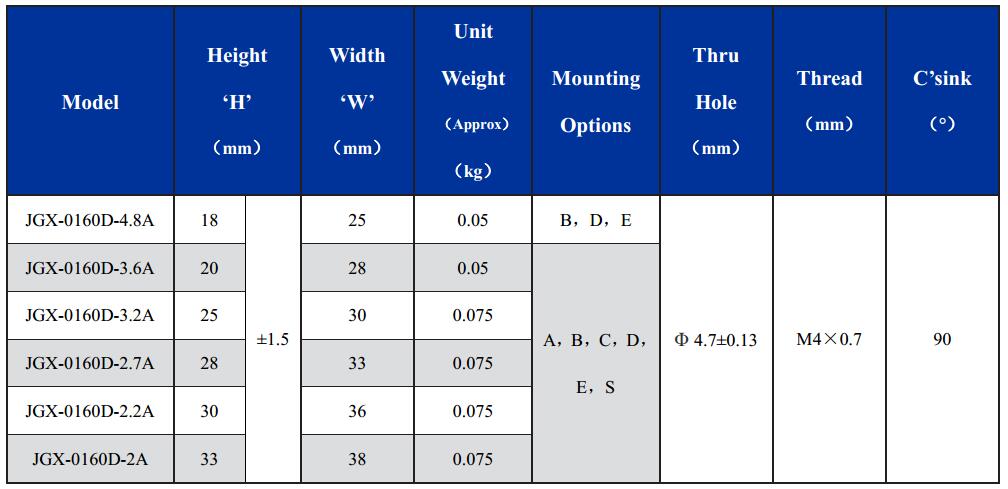

  • Dimension of JGX-0160 Series:

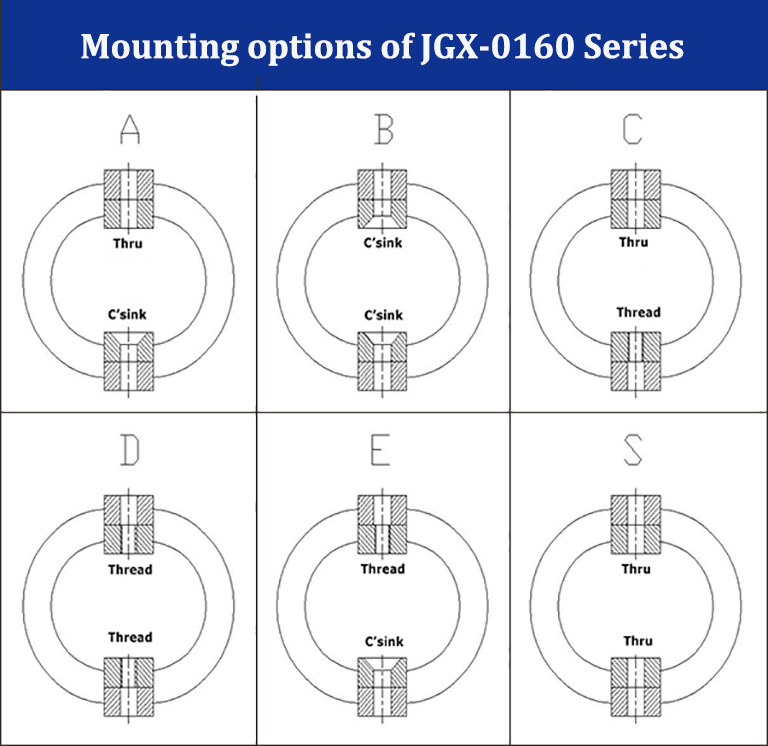

  • Mounting Options of JGX-0160 Series:

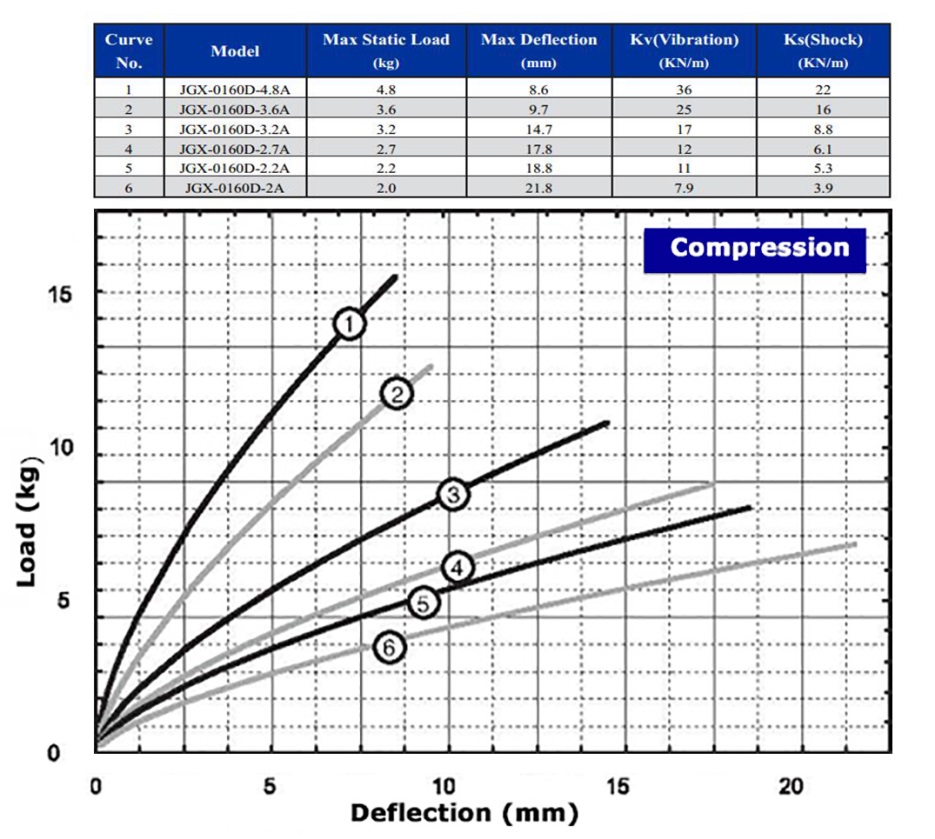

  • Compression of JGX-0160 Series:

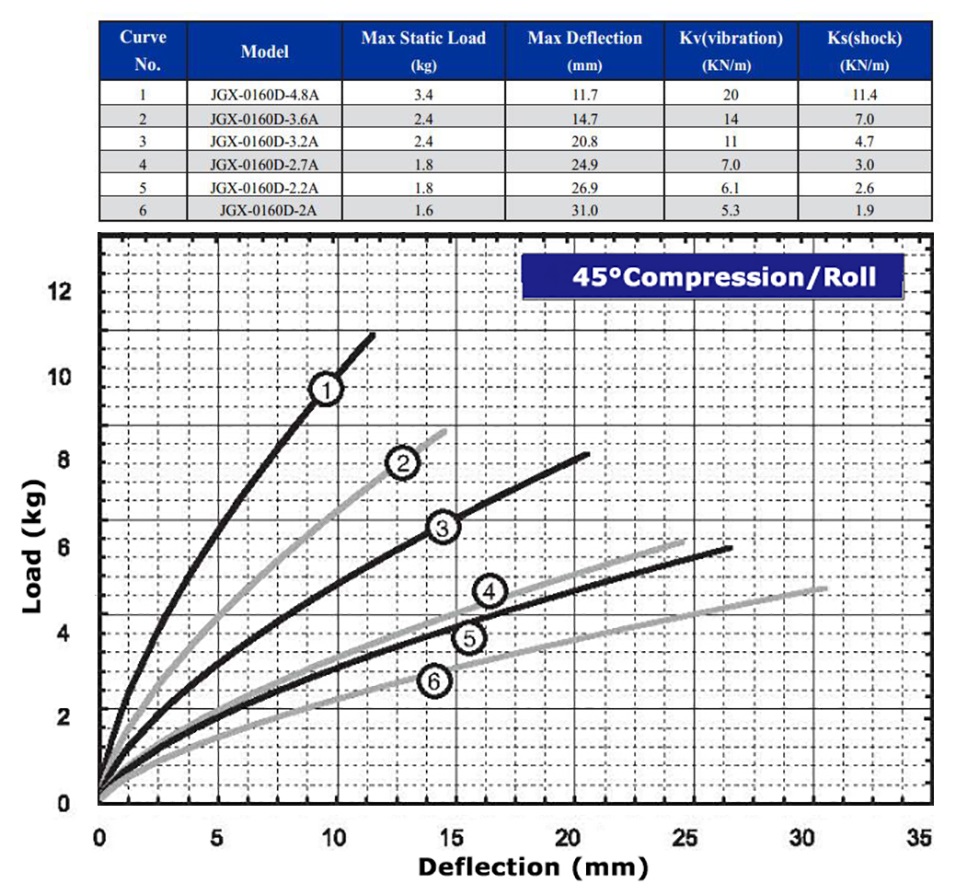

  • 45° Compression of JGX-0160 Series:

  • Shear/Roll of JGX-0160 Series:
