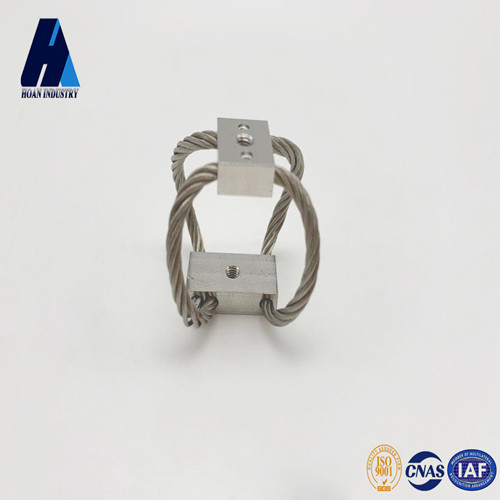

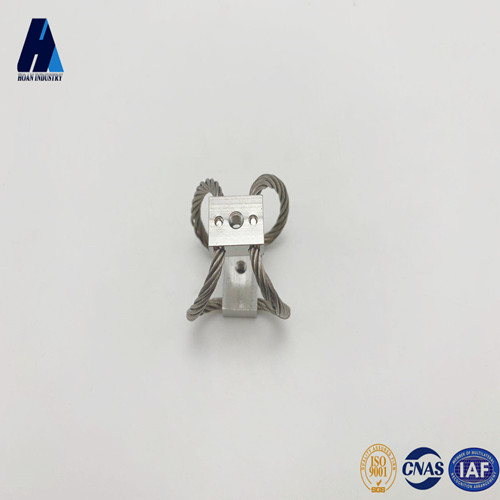

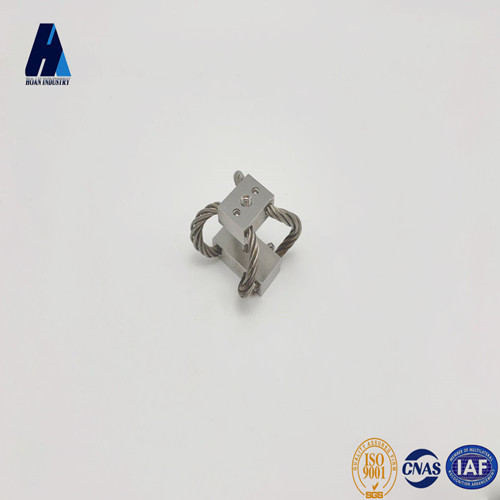

RC Car Aerial Photography GR3 Camera Vibration Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: RC Car Aerial Photography GR3 Camera Vibration Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

Xi'an Hoan's GR3 Series camera vibration isolators is one type camera vibration isolators , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

There are 4 models included in the GR3 series, which are made by the 2.4mm diameter wire rope winded in the two mounting bars. And the max static load of the GR3 series camera vibration isolatore are from 11N (1.12kg) to 30N (3.06kg). With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability. Specially used for building your camera gimbal as well as your helicopter drone wtih cameras.

Nowadays, the GR series vibration isolators are used widely in the field of RC car aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera drone, etc.


Technical Parameter:

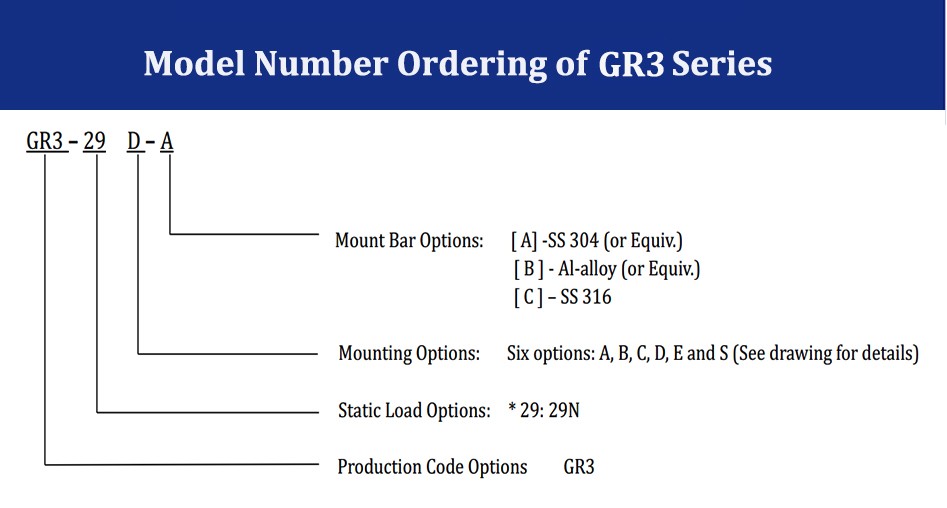

  • Model Number Code Ordering of GR3 Series:

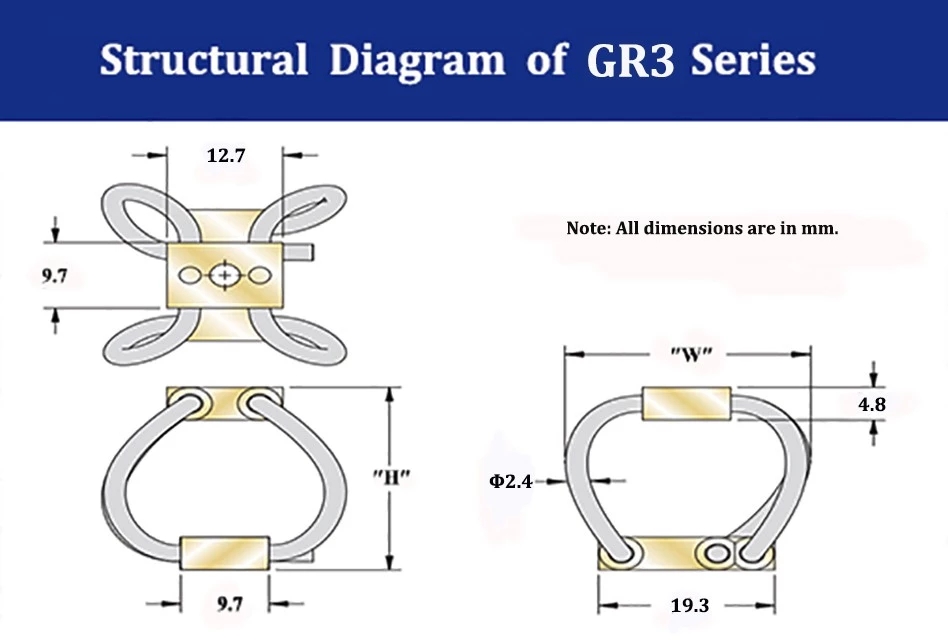

  • Structural Diagram of GR3 Series:

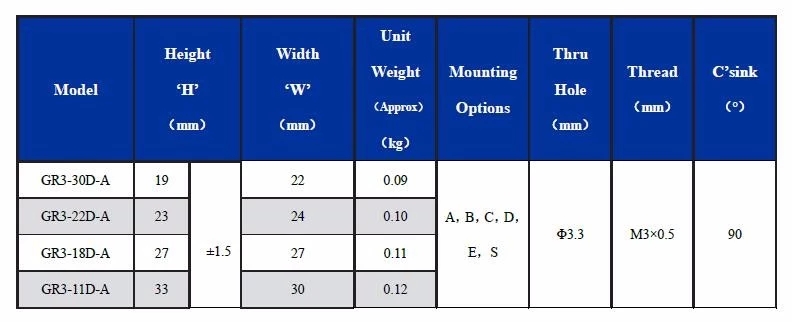

  • Dimension of GR3 Series:

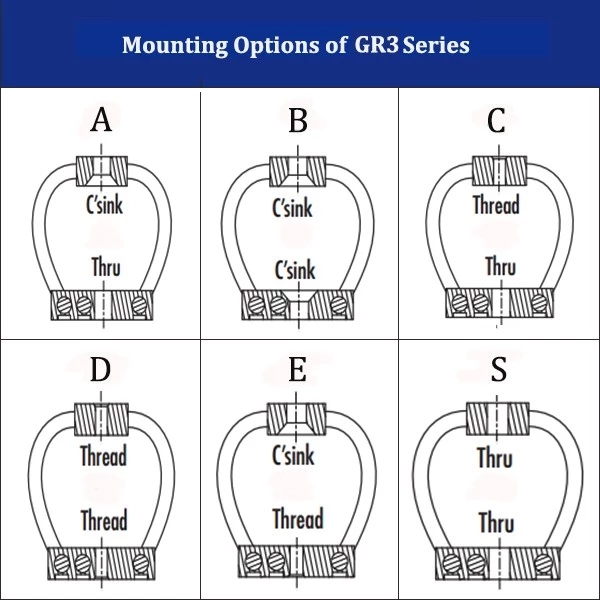

  • Mounting Options of GR3 Series:

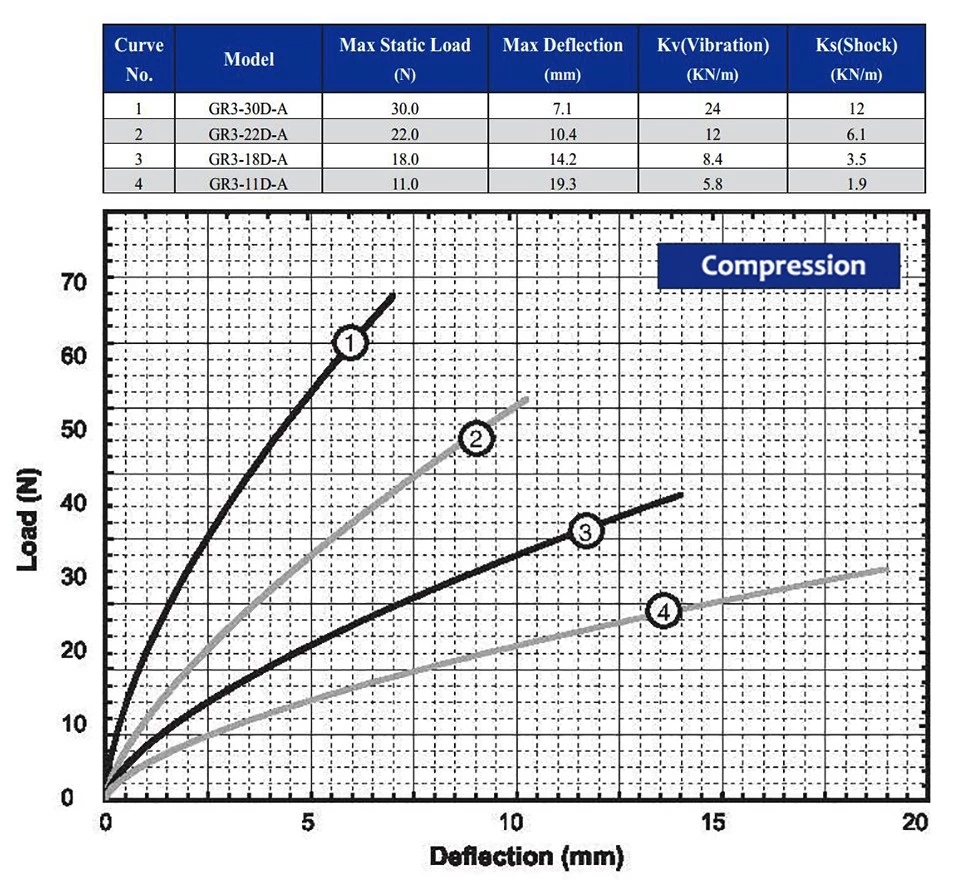

  • Compression of GR3 Series:

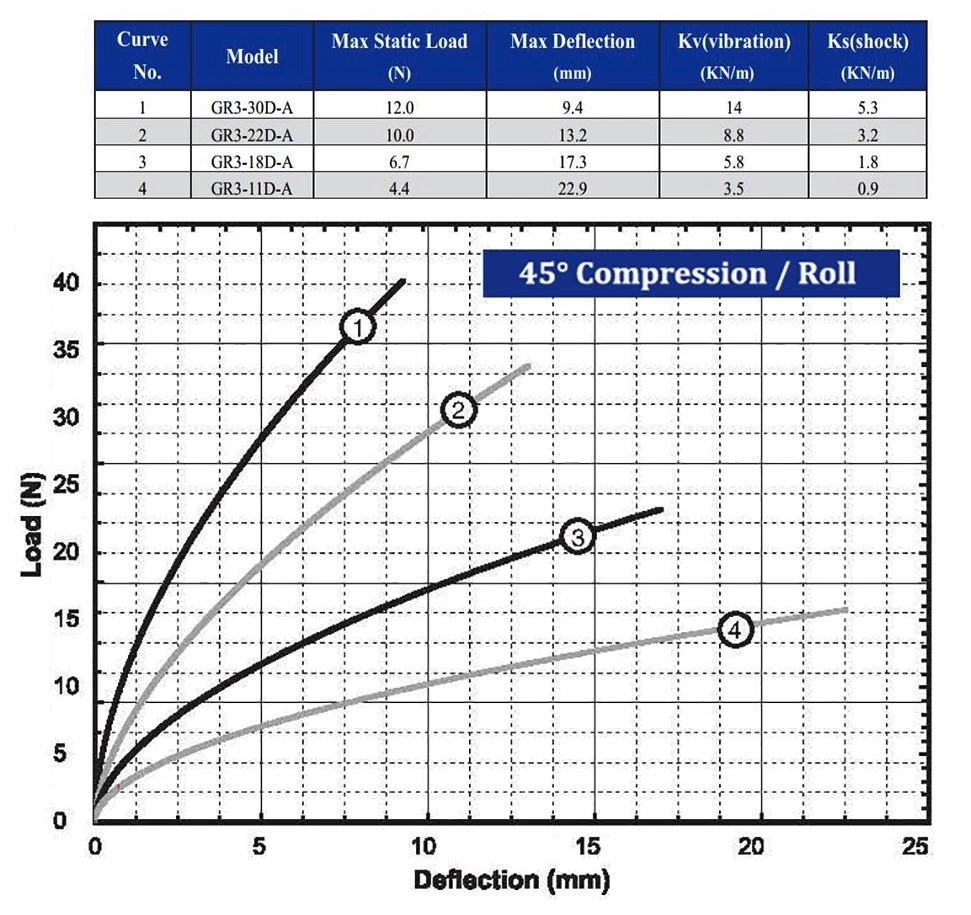

  • 45° Compression of GR3 Series:

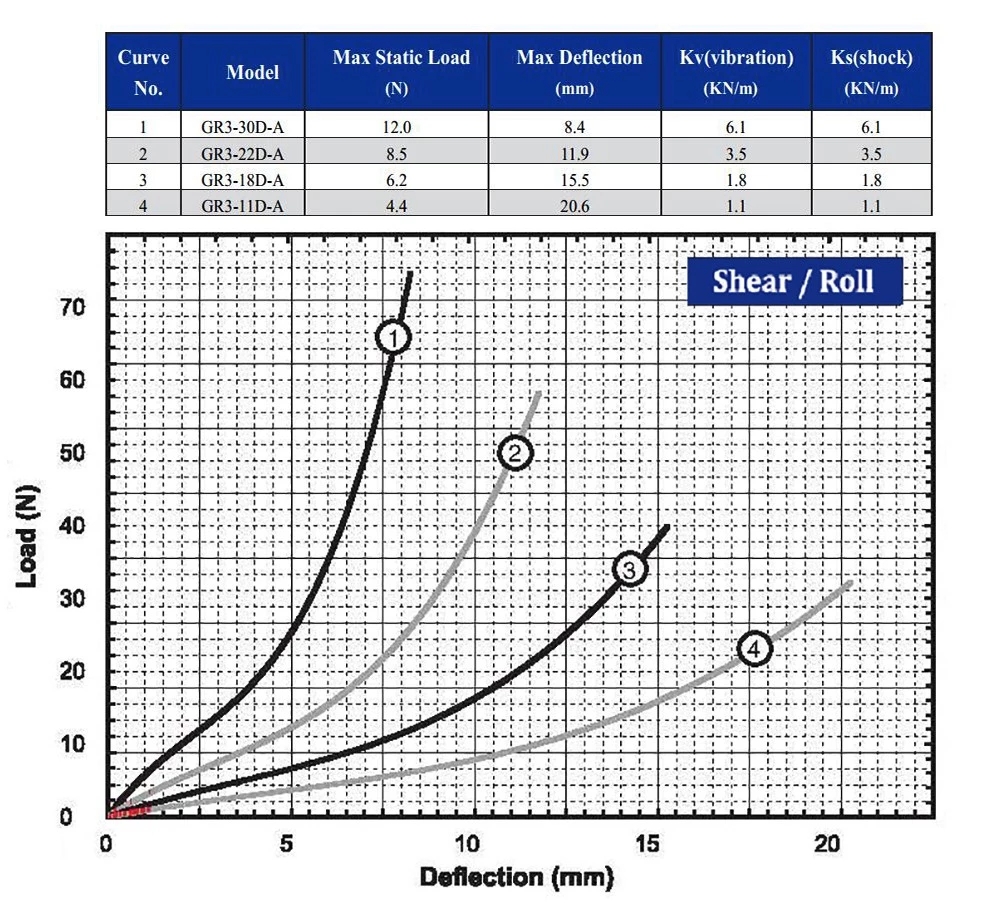

  • Shear/Roll of GR3 Series:
